Thanks to its compact tilting and swivelling head mechanism, it achieves a table size of 2,500 × 1,300 mm despite being a 5-axis machine.
BS101F
Simultaneous 5-axis gantry-type CNC router with multi-process capability.
"BS101F" is a Simultaneous 5-axis gantry-type CNC router equipped with tilting and turning functions. Although the footprint is compact , it is capable of performing complex, multi-axis machining with high precision and at high speeds. This machine is capable of handling a wide range of materials, including Houses equipment, housing panels, and plastic panels, and is designed to deliver both increased productivity and processing flexibility.
- Processing
purpose - Woodworking panels Woodworking(3D) Plastic panels Plastic(3D) Others
- table size
- 2,000～2,500 2,500～3,000
- Price range
- Contact us for details
Product Features
Product Overview
- The smallest floor space in SHODA's 5-axis control
- A 5-axis machine at an accessible price point
- High speed and High-accuracy machining is available.
- 「中小企業省力化投資補助金」対象機種
Feature Details
02

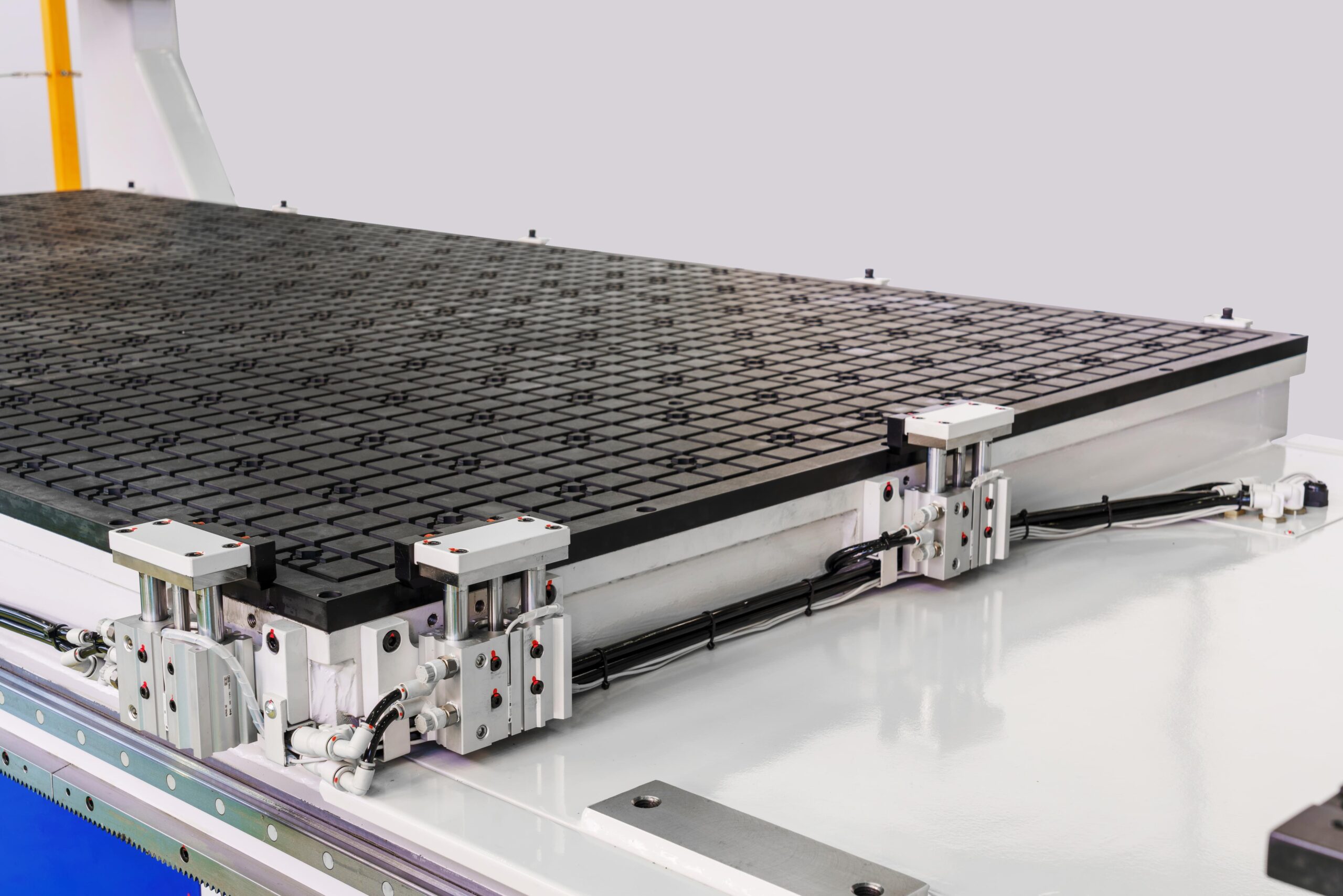

Automatic work positioning rulers make workpiece setup easy.
03
An adsorption jig can be mounted.
There are two types of adsorption jigs: matrix resin jigs and square-base resin jigs.
By attaching a adsorption jigs, you can install a suction pad.
Product Specifications
| Spindle | high frequency spindle 5kW/6.5kW 3,000～17,000min−¹ |
|---|---|
| Table Size | 2,500×1,300 |
| Stroke (X / Y / Z) | X:2,870 Y:1,670 Ｚ:250 |
| Automatic Tool Changer | Spindle HSK63F 8 magazines |
| CNC device | 6-axis control Simultaneous 4-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
Woodworking Boards
Delivering high precision and consistent quality across a wide range of applications,including furniture components,building materials, store fixtures,and interior decorative panels.
3D Woodworking
Replicating artisan craftsmanship with high precision and consistency on CNC routers for chairs, musical instruments,ornaments, and curved panels.
Plastic Sheets
Overcoming the unique challenges of plastic processing to support the manufacturing of industrial plastic components,semiconductor equipment parts,and resin nameplates.
3D Plastic Processing
Solving resin-specific processing issues for vacuum-formed products, industrial plastic components, and automotive interior resin panels.
