Aluminum
Enabling significant time savings through stack-cutting techniques for aerospace parts, engine covers, and various aluminum components.

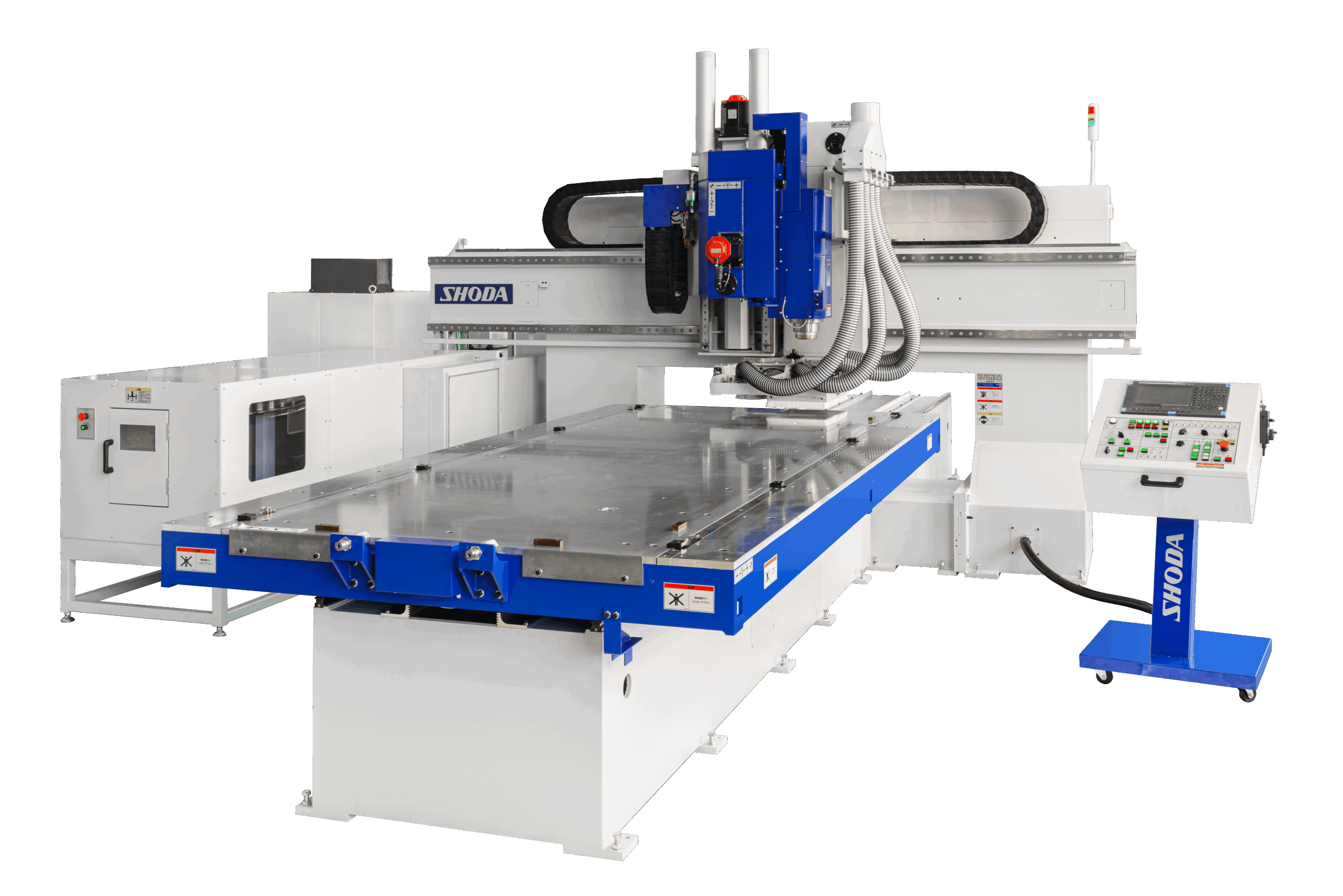

NC163TR
High-power CNC router for efficient multi-pass cutting of aluminum sheets
The “NC163TR” is an CNC router designed specifically for machining aluminum sheets used in aircraft parts and other applications. Using our patented “Micro-Tab Method,” overlapping cuts of up to 12.7 mm are possible without the need for screws. This significantly reduces processing time and improves efficiency. With its spacious work area and high-output 30 kW spindle, it delivers outstanding performance in pocket machining as well.
- Processing
purpose - Aluminum
- table size
- 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- Significantly reduces processing time with the patented “Micro-Tab Method,” which allows for overlapping cuts without screws
- Maximum workpiece size: 3,900 × 1,270 mm
- Equipped with an AC spindle, it is capable of thread cutting
- Pocket machining on aluminum sheets also proves highly effective
Product Specifications
| Spindle | AC spindle 30kW 1,700～30,000min−¹ |
|---|---|
| Table Size | 4,000×1,500 |
| Stroke (X / Y / Z) | X:4,000 Y:2,100 Z:350 |
| Automatic Tool Changer | HSKW-E50 24 magazines |
| CNC device | 4-axis control, simultaneous 3-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
