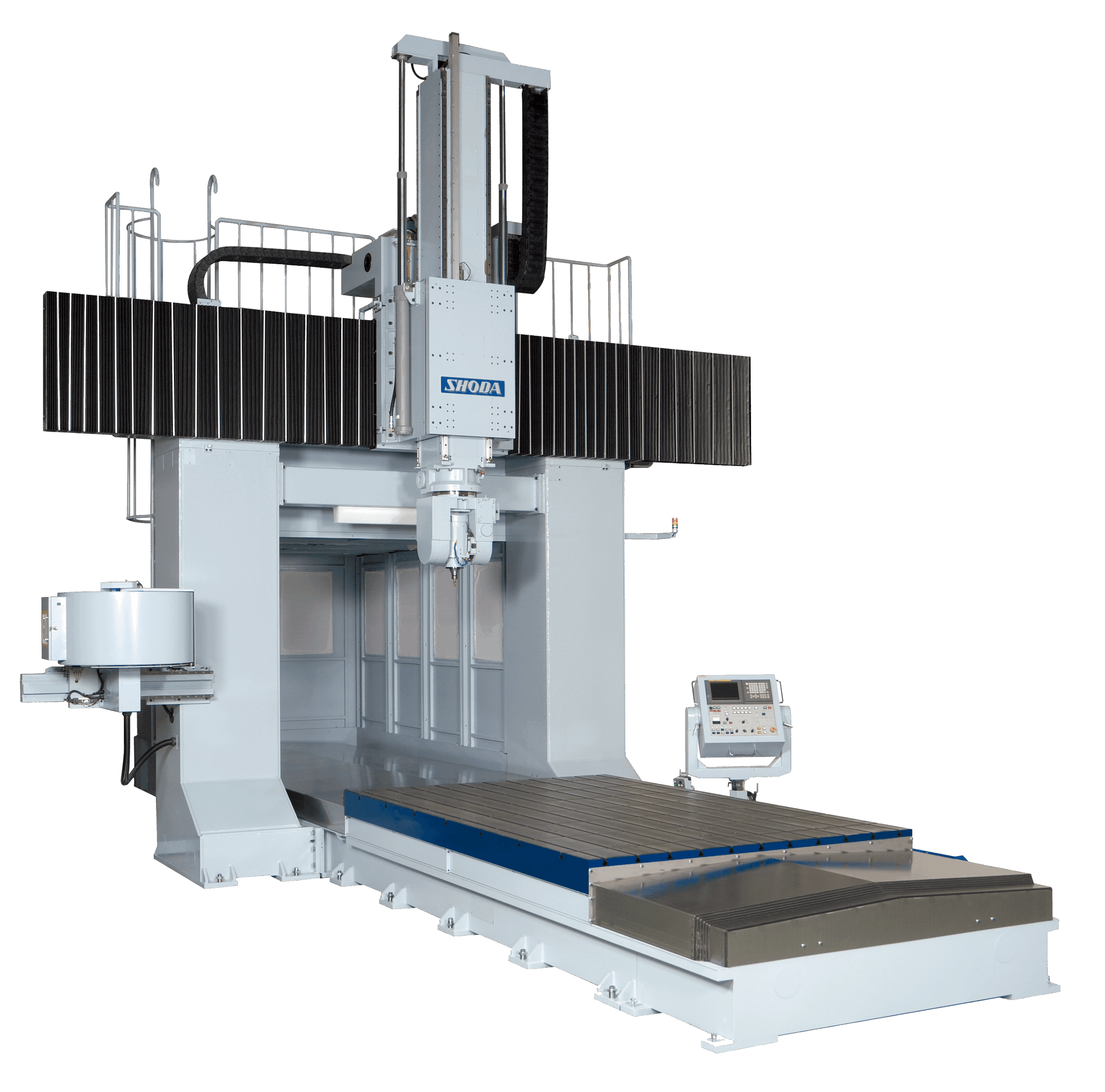

NC163U
5-axis simultaneous control CNC router capable of handling large-scale prototyping and complex shapes
The “NC163U” is a 5-axis simultaneous control CNC router suitable for machining large-scale prototypes and design models. It features a long Z-axis stroke of 1,000 mm and high rigidity thanks to its four-rail ram structure. Our proprietary oil-cooled spindle delivers a smooth machined surface and enables high-precision machining of complex shapes, such as undercuts. It is particularly effective for automotive and foundry foam molds.
- Processing
purpose - Woodworking(3D) Plastic(3D)
- table size
- 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- With simultaneous 5-axis control, even undercut shapes can be machined
- The spindle is equipped with our proprietary oil-cooled AC spindle, delivering a smooth machined surface
- The Z-axis ram features a four-rail design, ensuring high rigidity and precision even with a long stroke of 1,000 mm.
Product Specifications
| Spindle | AC spindle 5.5kW/7.5kW 100～18,000min−¹ |
|---|---|
| Table Size | 3,600×2,200 |
| Stroke (X / Y / Z) | X:4,600 Y:3,200 Z:1,800 |
| Automatic Tool Changer | BT40 16 magazines |
| CNC device | 5-axis control; simultaneous 5-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
