NC197A

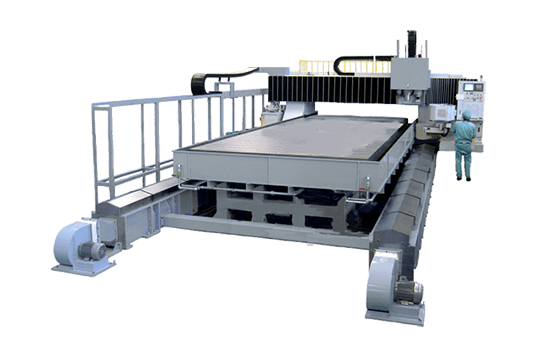

A large gantry-type CNC router specialized for machining aluminum aircraft fuselage parts
"NC197A" is a large gantry-type CNC router specialized for machining aluminum aircraft fuselage parts. This machine is equipped with a high-powered AC spindle, and supports milling and bolling. The 7,000mm long table allows for the processing of long materials. Even with the long table, the traveling bridge provides for a small, space saving footprint.
- Processing
purpose - Aluminum
- table size
- 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- The high-output AC spindle enables heavy-duty machining.
- Capable of milling, boring, and drilling aluminum aircraft fuselage components
- Equipped with a long table, the machine can handle a wide range of workpiece sizes, from short to long materials
- The fixed-table gantry configuration reduces installation space requirements.
Product Specifications
| Spindle | AC spindle 18.5/22kW 100～20,000min−¹ |
|---|---|
| Table Size | 7,000×3,000 |
| Stroke (X / Y / Z) | X:7,300 Y3,000 Z:400 |
| Automatic Tool Changer | HSK A63 16 magazines |
| CNC device | 6-axis control, simultaneous 6-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
