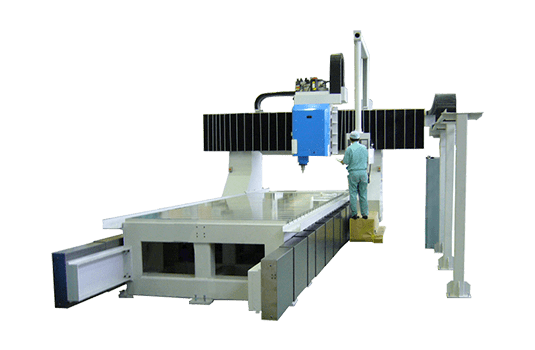

NC293A
High-power gantry-type CNC router capable of both metalworking and processing long materials
The “NC293A” is a cost-effective gantry-type CNC router designed for machining metals such as steel, cast iron, and aluminum. Equipped with a high-output AC spindle and a powerful BT50 tool holder, it enables milling and boring operations. It features a long table capable of handling long workpieces, while its gantry structure allows for space-saving installation.
- Processing
purpose - Aluminum
- table size
- 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- Significantly reduces processing time thanks to the patented “Micro-Tab Method,” which allows for overlapping cuts without screws
- Maximum workpiece size: 3,900 × 1,270 mm
- Equipped with an AC spindle, it is capable of thread cutting
- Pocket machining on aluminum sheets also proves highly effective
Product Specifications
| Spindle | AC spindle 15/18.5kW 100～3,000min−¹ |
|---|---|
| Table Size | 6,000×2,000 |
| Stroke (X / Y / Z) | X:6,000 Y:2,400 Z:400 |
| Automatic Tool Changer | BT50 16 magazines |
| CNC device | 4-axis control, simultaneous 4-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
