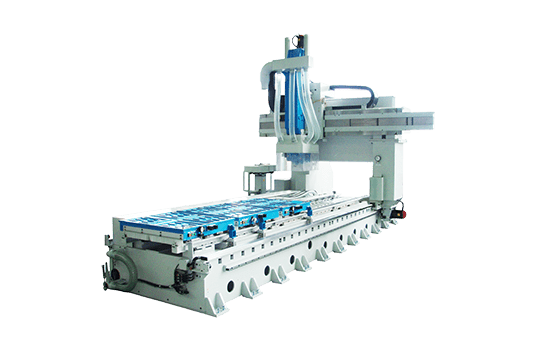

NC293U
Simultaneous 5-axis CNC router that is designed to address the sink or stove openings in artificial marble countertops.
"NC293U" is a Simultaneous 5-axis CNC router that is designed to address the sink or stove openings in artificial marble countertops. The table is divided so positioning to address both the sink and cooking openings is possible. The machine’s 5 axes capability and ATC device greatly simplify the potentially complicated shapes of the counter tops.
- Processing
purpose - Others
- table size
- 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- A CNC router that is designed to address the sink or stove openings in artificial marble countertops.
- The table is divided so positioning to address both the sink and cooking openings is possible.
- The table can be moved to the desired processing position
- With 5-axis control, it can handle complex workpiece shapes, and the ATC enables multi-step machining.
Product Specifications
| Spindle | AC spindle 5.5kW/7.5kW 1,000～18,000min−¹ |
|---|---|
| Table Size | 12,200×4,500 |
| Stroke (X / Y / Z) | X:10,800 Y:2,900 Z:800 |
| Automatic Tool Changer | HSK63 16 magazines |
| CNC device | 6-axis control; simultaneous 6-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
