Woodworking Boards
Delivering high precision and consistent quality across a wide range of applications,including furniture components,building materials, store fixtures,and interior decorative panels.

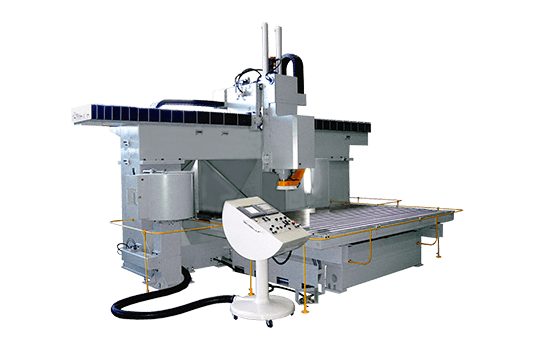

NC516
Simultaneous 3-axis control CNC router for heavy duty machining of large 3D workpieces
This machine is a simultaneous 3-axis control CNC router for model machining that combines high mechanical rigidity with a large machining area. With a table size of 3,000 x 2,000mm and a 700mm Z axis stroke, the router is capable of machining large size three dimensional work pieces such as those used in the automotive industry.
With its 5.5kw AC spindle motor, this model is designed for light metals, resins, or plastics.
- Processing
purpose - Woodworking panels Plastic panels Others
- table size
- 2,500～3,000 3,000～
- Price range
- Contact us for details
Product Features
Product Overview
- A large table and a high Z-axis stroke, ideal for large workpieces and prototype machining.
- This router’s components are strong and rigid enough to perform even heavy cuts with exacting precision.
- Extensive experience in mold and model machining applications.
Product Specifications
| Spindle | high frequency spindle 5,5kw/8,5kw 3,000～18,000min−¹ |
|---|---|
| Table Size | 3,000×2,000 |
| Stroke (X / Y / Z) | X:2,000 Y:3000 Ｚ:800 |
| Automatic Tool Changer | BT30 16 magazines |
| CNC device | 3-axis control; simultaneous 3-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
Plastic Sheets
Overcoming the unique challenges of plastic processing to support the manufacturing of industrial plastic components,semiconductor equipment parts,and resin nameplates.
