Woodworking Boards
Delivering high precision and consistent quality across a wide range of applications,including furniture components,building materials, store fixtures,and interior decorative panels.

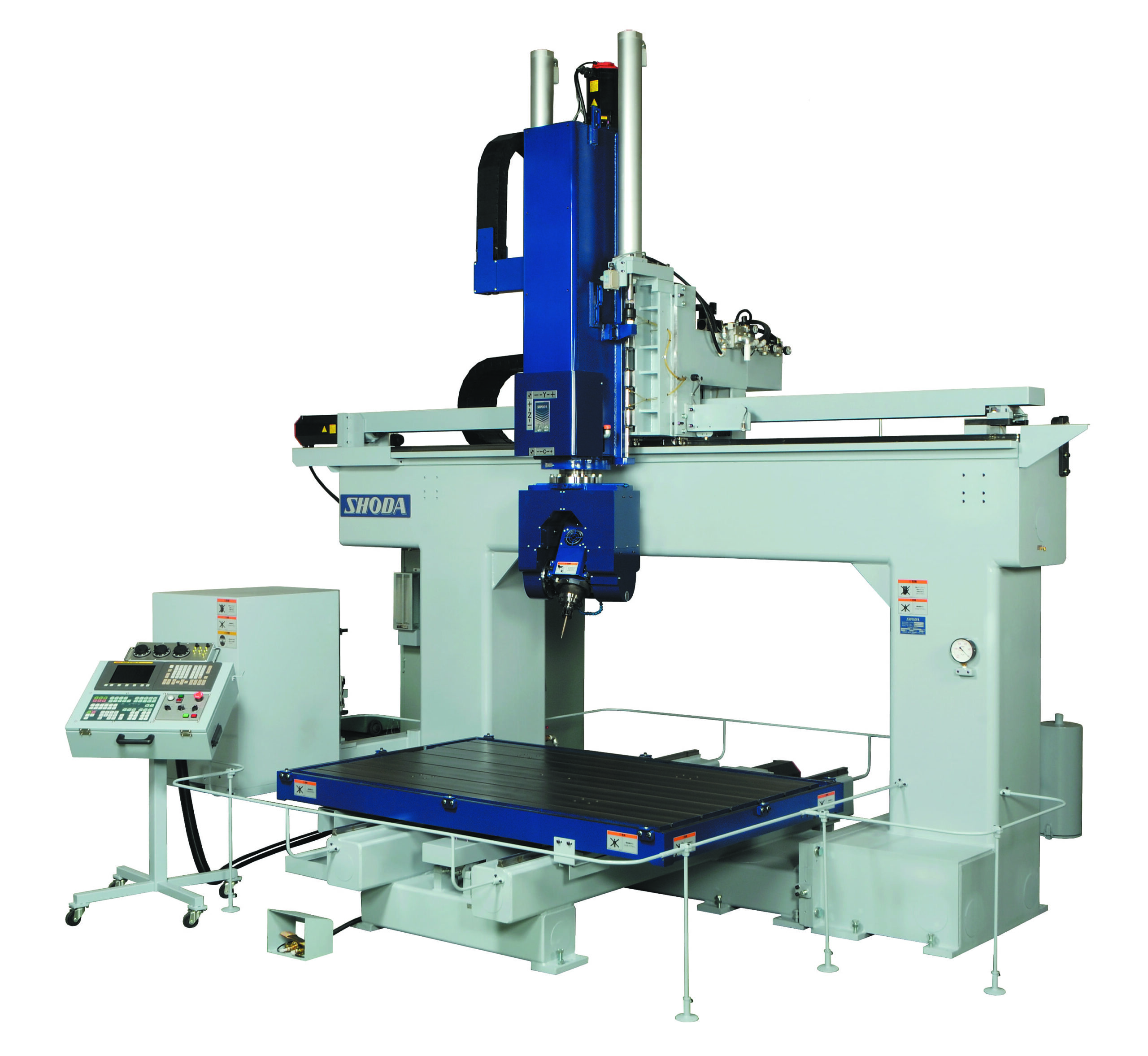

NC7000
A programmable CNC router capable of machining three-dimensional objects with a deep Z-axis stroke
The “NC7000” is a programmable CNC router ideal for machining resins and plastics. With a deep Z-axis stroke of 600 mm, it excels at machining three-dimensional objects. With the ability to freely select combinations of spindles and tables, along with a high-power head capable of up to 20,000 RPM and a BT30 ATC, this machine flexibly and precisely meets a wide range of machining needs.
- Processing
purpose - Woodworking panels Plastic panels Aluminum
- table size
- 1,200～2,000
- Price range
- Under 30 million yen
Product Features
Product Overview
- This model is the coverless version of the NCN8300
- Improved positioning accuracy and roundness achieved through a newly designed drive system
- Thread cutting is possible with the SHODA AC spindle
Product Specifications
| Spindle | AC spindle 5.5kW/7.5kW 100～20,000min−¹ |
|---|---|
| Table Size | 1,300×1,300 |
| Stroke (X / Y / Z) | X:1,300 Y:1,300 Ｚ:400 |
| Automatic Tool Changer | BT30（OP:BT40）8 magazines (OP: 16) |
| CNC device | 3-axis control; simultaneous 3-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
Plastic Sheets
Overcoming the unique challenges of plastic processing to support the manufacturing of industrial plastic components,semiconductor equipment parts,and resin nameplates.
Aluminum
Enabling significant time savings through stack-cutting techniques for aerospace parts, engine covers, and various aluminum components.
