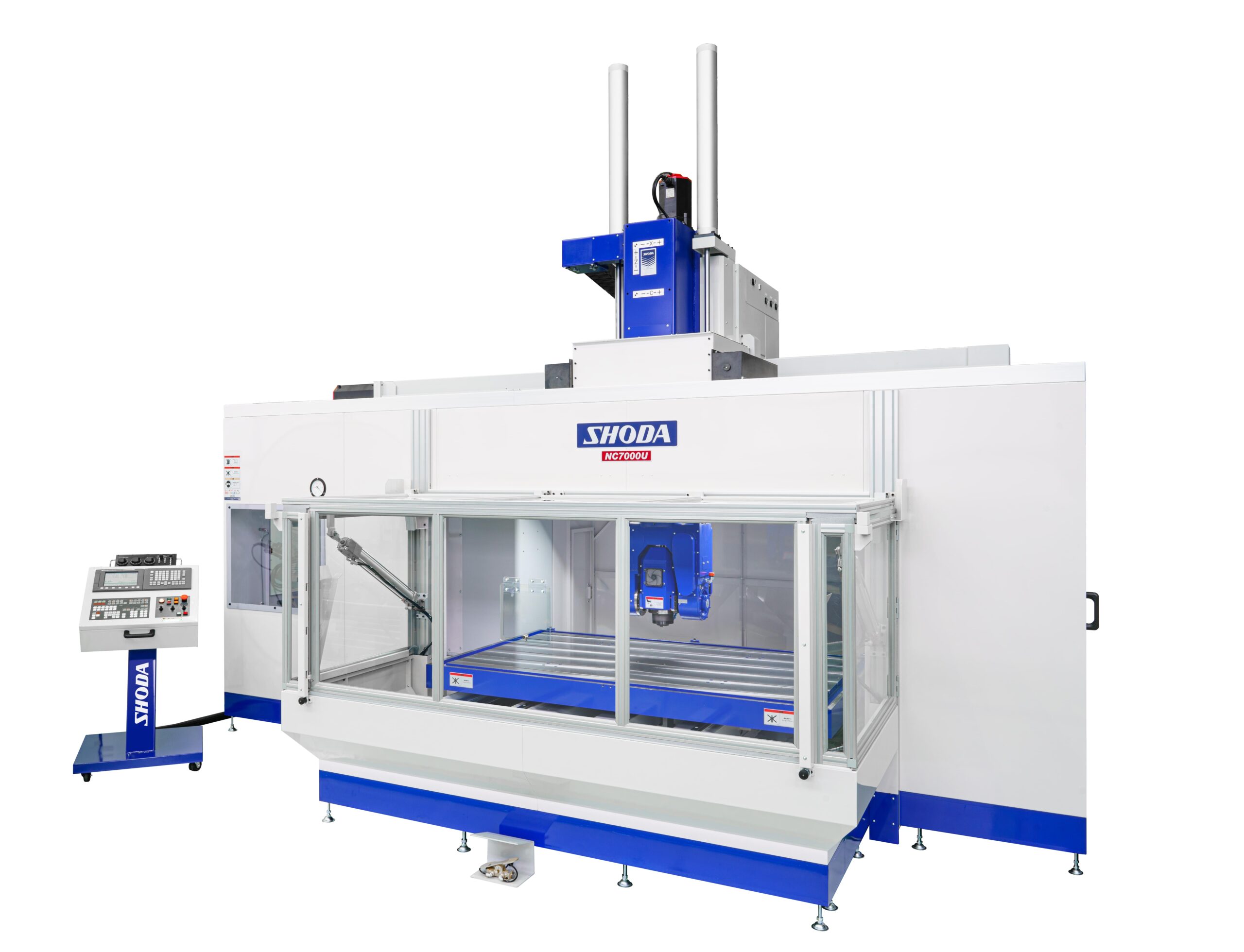

NC7100UA
Simultaneous 5-axis CNC router that combines dust control with 3D machining
“NC7100UA” is a simultaneous 5-axis control CNC router that combines advanced dust control with 3D machining. The 800 mm long-stroke Z-axis provides flexibility for machining thick workpieces and large-scale models. Its key feature is the option to choose between a bellows cover under the table or a full-cover that encloses the entire machine, effectively minimizing the spread of cutting dust. The machine enables high-precision machining of complex 3D shapes while maintaining a clean working environment.
- Processing
purpose - Woodworking panels Woodworking(3D) Plastic panels Plastic(3D) Aluminum Carbon Others
- table size
- 2,000～2,500
- Price range
- Under 50 million yen
Product Features
Product Overview
- Simultaneous 5-axis control enables 3D machining
- Z 800mm is ideal for model processing
- Installing a bellows cover under the table and a full-cover helps prevent the spread of cutting dust
Product Specifications
| Spindle | high frequency spindle 5.5kW/8.5kW 3,000～18,000min−¹ |
|---|---|
| Table Size | 2,100×1,300 |
| Stroke (X / Y / Z) | X:2,600 Y:1,600 Z:800 |
| Automatic Tool Changer | BT30 （OP: BT40、HSK63F）8 magazines (OP: 16) |
| CNC device | 5-axis control; simultaneous 5-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
3D Woodworking
Replicating artisan craftsmanship with high precision and consistency on CNC routers for chairs, musical instruments,ornaments, and curved panels.
Plastic Sheets
Overcoming the unique challenges of plastic processing to support the manufacturing of industrial plastic components,semiconductor equipment parts,and resin nameplates.
3D Plastic Processing
Solving resin-specific processing issues for vacuum-formed products, industrial plastic components, and automotive interior resin panels.
Carbon Composites / CFRP
Contributing to higher precision and a cleaner working environment in the machining of automotive components and aerospace wings or fuselages.
Aluminum
Enabling significant time savings through stack-cutting techniques for aerospace parts, engine covers, and various aluminum components.
