NCN1220

Gantry type CNC router used for a wide range of processing from furniture to aluminum parts

"NCN1220"is a gantry type CNC router used for a wide range of processing from furniture to aluminum parts. Equipped with a high-power AC spindle and an ATC capable of storing up to 20 tools, it delivers high-precision machining. There are a wide range of options, such as bellows dust collection CNC elevated type, allowing for flexible customization to meet the specific needs of your production site.

Processing purpose: Woodworking panels Plastic panels Aluminum Carbon Others

table size: 2,500～3,000 3,000～

Price range: Contact us for details

Product Features

Product Overview

A large table enable machining an original work.
Equipped with a tapping spindle as standard
Smooth surface is realied with center-through air blowⅡ for plastic machining

Feature Details

Large table size(3,000×1,400(mm)) enables machining large warks and original work.
Processing that was previously divided into multiple steps can now be performed in a single, integrated process.

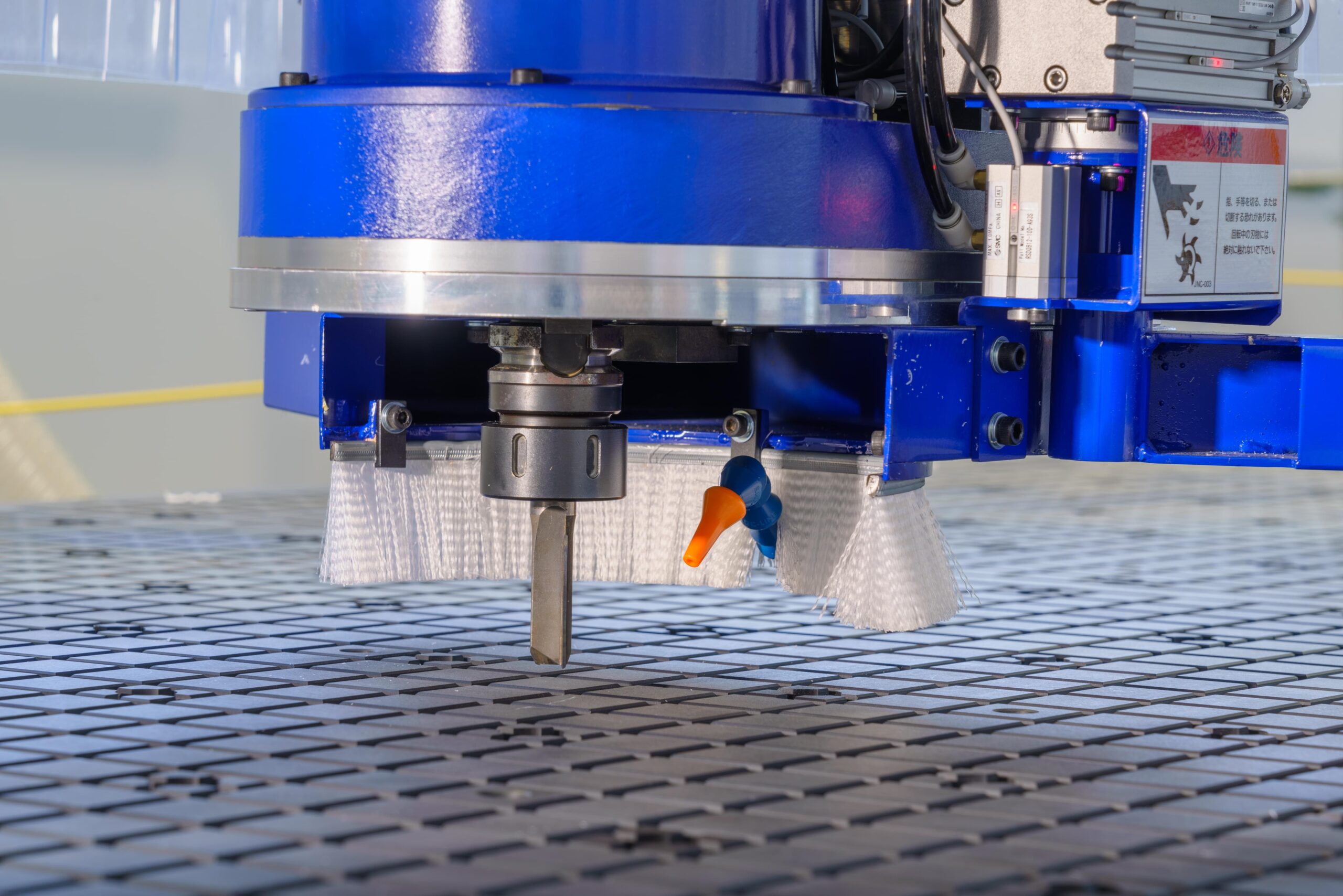

Tapping is available with AC spindle.
It maintains a constant RPM, ensuring that power is not lost even at low speeds.

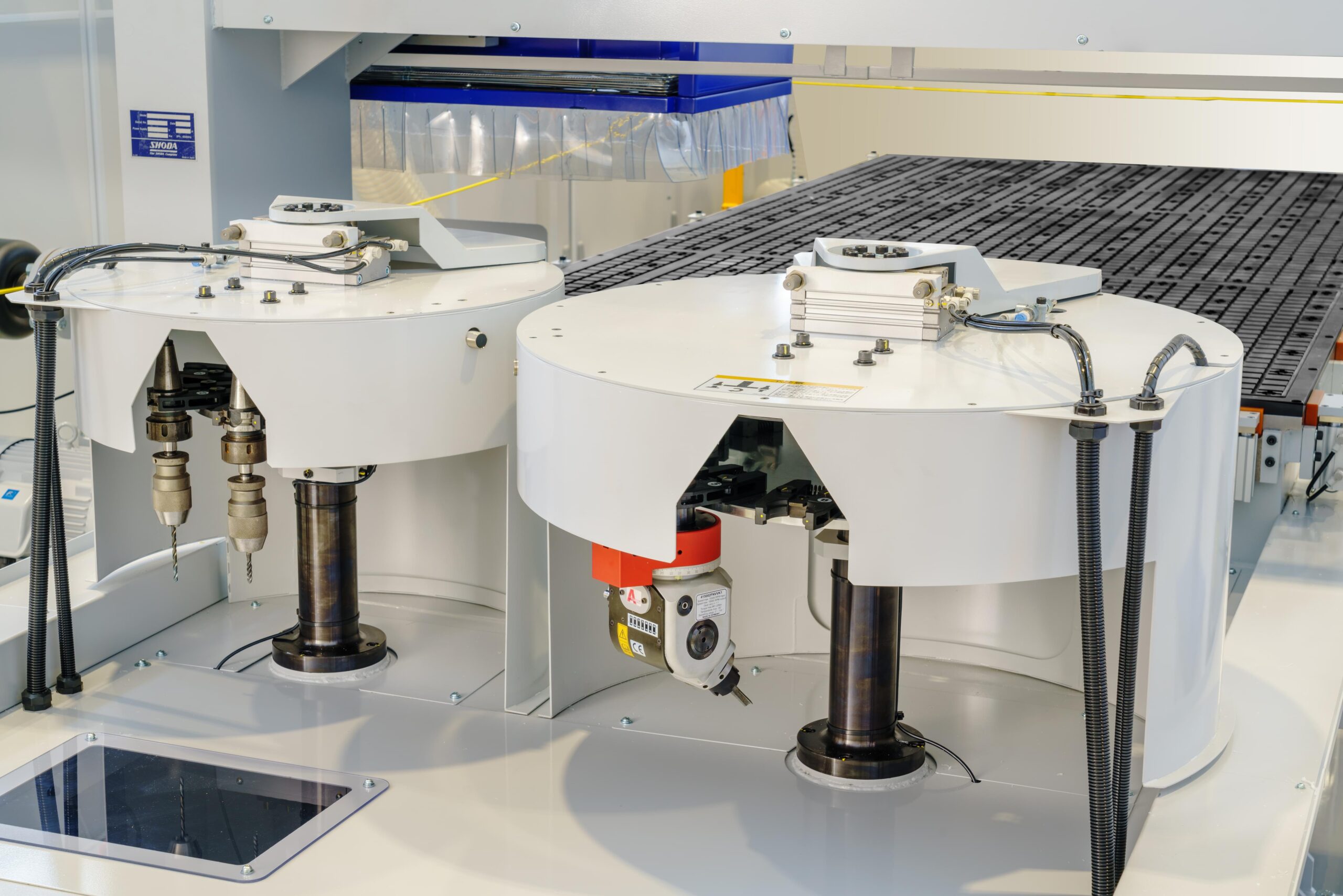

ATC can be stored up to 20 tools as an option.
Since a variety of tools and extra tools are stored in the ATC, you only need to set up the tools once.

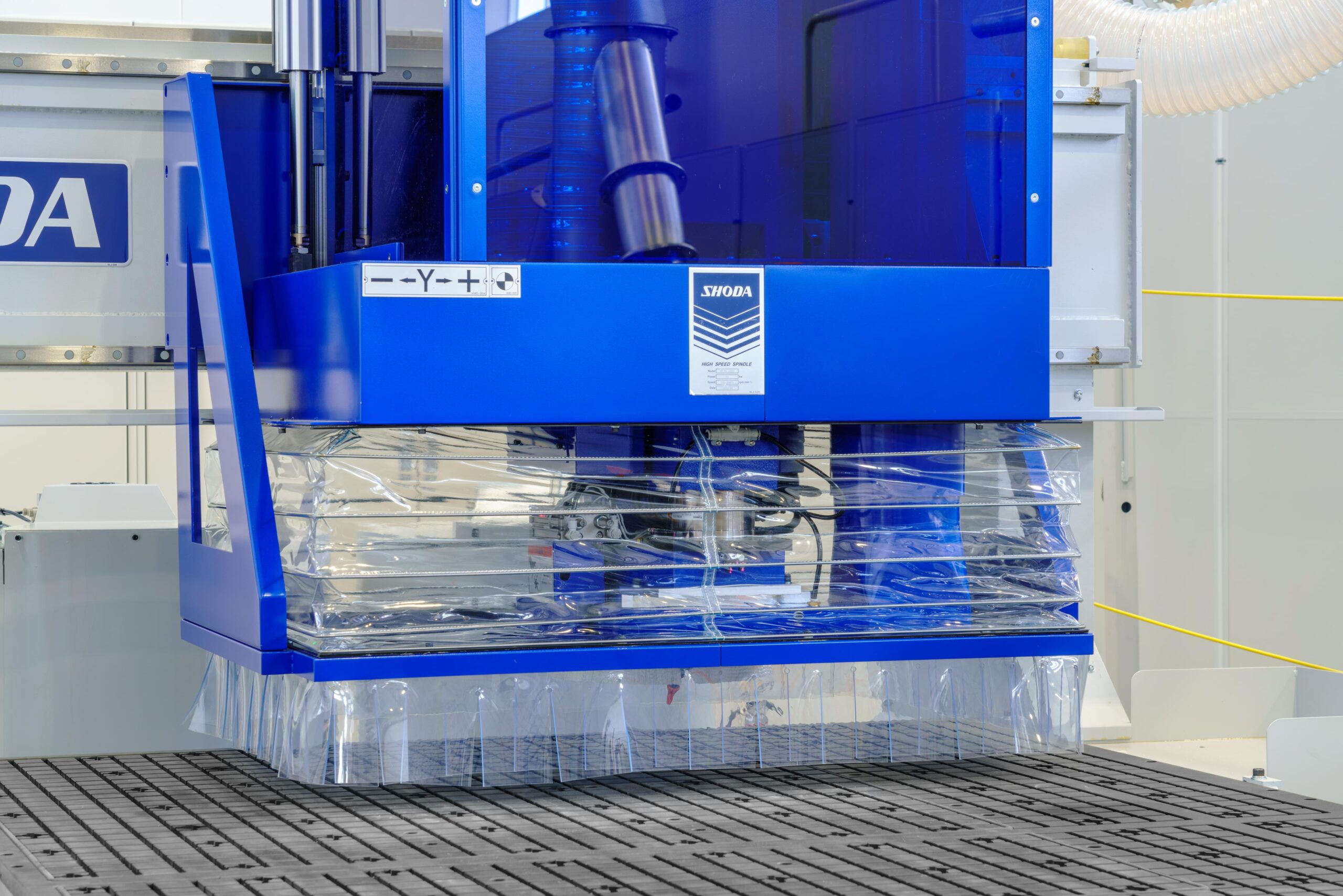

Bellows dust collection NC elevated type reduce the scattering of cutting dust.
Height is changeable according to processing materials.

Product Specifications

Spindle	AC spindle 5.5kW/7.5kW　100～20,000min−¹
Table Size	3,000×1,400
Stroke (X / Y / Z)	X:3,650　Y:1,710　Z:350
Automatic Tool Changer	spindleBT30（OP:BT40） 12 magazines (OP: 20)
CNC device	4-axis control (OP: 5-axis control) Simultaneous 4-axis control
Machine Dimensions (W × D × H)	ー
Machine Weight	ー

※ Specifications are subject to change without notice for improvement purposes.

Processing Examples

Woodworking Boards

Delivering high precision and consistent quality across a wide range of applications,including furniture components,building materials, store fixtures,and interior decorative panels.

Plastic Sheets

Overcoming the unique challenges of plastic processing to support the manufacturing of industrial plastic components,semiconductor equipment parts,and resin nameplates.
