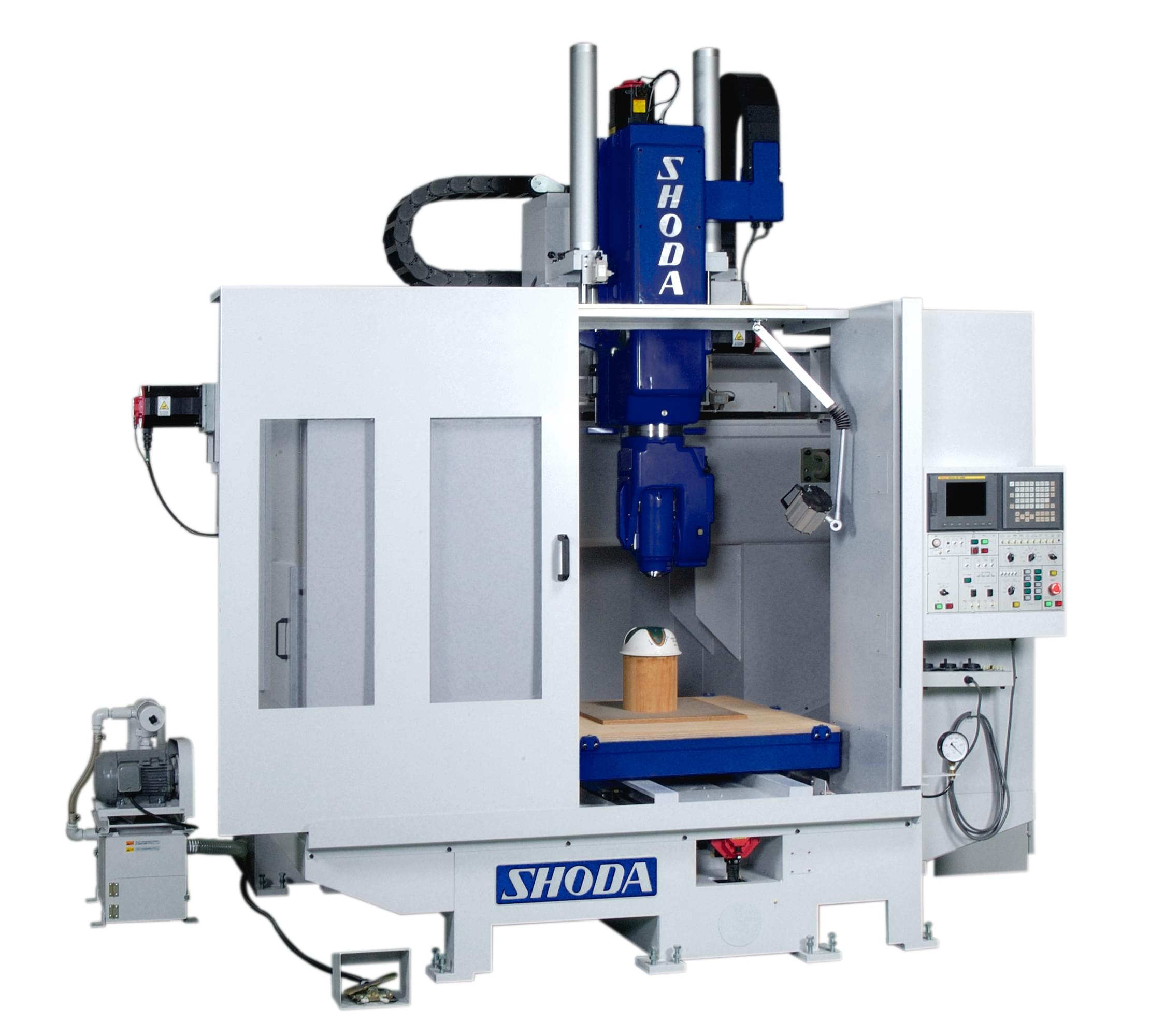

NCU516UE
Simultaneous 5-axis CNC router for 3D machining of vacuum-formed resin parts
The “NCU516UE” is a 5-axis simultaneous control CNC router designed specifically for secondary processing of vacuum-formed resin parts.Equipped with a universal head featuring swivel and tilt functions, it can perform complex 3D machining operations—such as deburring, drilling, and notching—fully automatically.The Z-axis boasts a long stroke of 600 mm, enabling not only the machining of molded parts but also the modeling of resin molds.It is suitable for finishing three-dimensional plastic products such as home appliances and automotive parts.
- Processing
purpose - Plastic panels Carbon Others
- table size
- ～1,200 1,200～2,000
- Price range
- Under 40 million yen
Product Features
Product Overview
- Proves highly effective for secondary processing of vacuum-formed resin parts
- The router spindle, featuring three axes (X, Y, Z) plus rotation and tilt functions, enables complex 3D machining.
- The Z-axis has a stroke of 600 mm and is capable of modeling resin molds
- Fully automated continuous processing for deburring, drilling, notching, and more
Product Specifications
| Spindle | 3,000～15,000min−¹ |
|---|---|
| Table Size | 1,000×1,000 |
| Stroke (X / Y / Z) | X:1200 Y:1,600 Ｚ:600 |
| Automatic Tool Changer | BT30 8 magazines |
| CNC device | 5-axis control, simultaneous 5-axis control |
| Machine Dimensions (W × D × H) | ー |
| Machine Weight | ー |
※ Specifications are subject to change without notice for improvement purposes.
Processing Examples
Carbon Composites / CFRP
Contributing to higher precision and a cleaner working environment in the machining of automotive components and aerospace wings or fuselages.
